DPX Series Single-stage Rotary Vane Vacuum Pump

  • Pumping Speed : 16-750[ m3/h ]

  • 4.4-213[ L/S ]

  • 10-200[ pa ]

  • Extreme Pressure : 0.1-2[ mbar ]

  • Motor Power : 0.5-18.5[ kW ]

  • 0.7-25[ hp ]

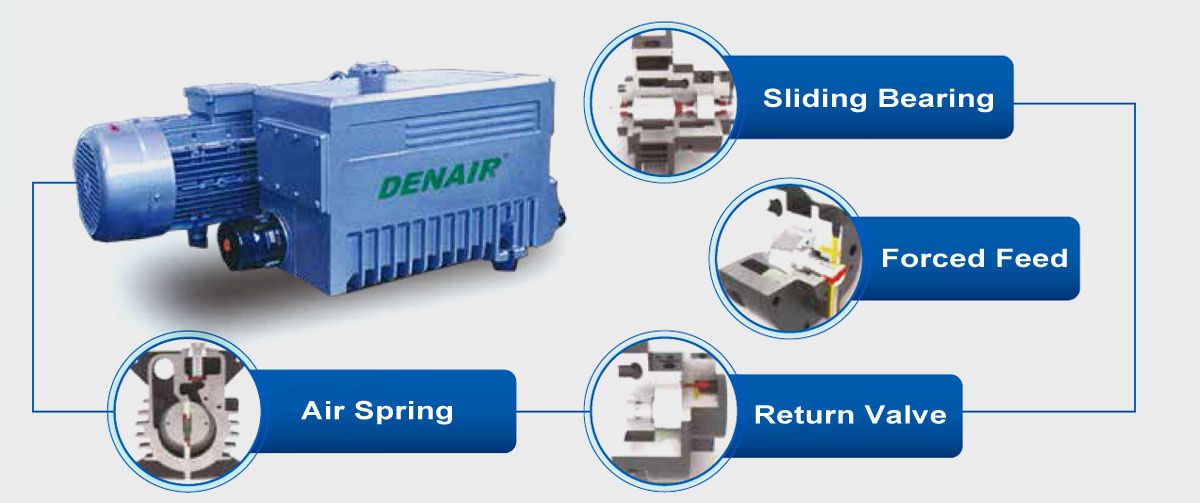

DPX Series Single-stage Rotary Vane Vacuum Pump Advantages:

  • The material quality, simple operation and maintenance
  • Advanced technology, high durability, low operating cost
  • Energy conservation and environmental protection, the structure is compact and light
  • Clean exhaust lampblack
  • No spring, low noise, low vibration
  • Using the built-in non-return valve oil, absolute no oil leak
  • Using the built-in pump forced feed, continuous and stable operation under atmospheric pressure for a long time

DPX Series Single-stage Rotary Vane Vacuum Pump Application:

  • Crystallization, vacuum distillation, injection, precooling
  • Vacuum filter, canned, compression
  • Vacuum coating and the industrial furnace as the backing pump and drainage pump
  • Powder material or liquid vacuum conveying, collection
  • Vacuum packaging and food processing technology
  • Thermoforming (blister, pressure air and foam molding)
  • The vacuum degassing, deaeration, impregnation, concentration, drying
  • Vacuum adsorption, fixture, spreader, chuck
  • Vacuum pressure, finalize the design, the paster
  • Factory, hospital, laboratory, the central vacuum system
  • And other types of vacuum pump, vacuum unit of the special purposes

DPX Series Single-stage Rotary Vane Vacuum Pump Technical Parameters:

Model DPX16 DPX21 DPX40 DPX63 DPX100 DPX160 DPX200 DPX250 DPX300 DPX630 DPX750
Pumping 50HZ m3/h 16 20 40 63 100 160 200 250 300 640 750
L/s 4.4 5.5 11 17 27 44 55 69 83 177 213
60HZ m3/h 9 24 48 78 120 192 240 300 360 750 -
L/s 5.2 6.6 13 21 33 53 66 83 100 213 -
Ultimate Pressure mbar 1.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 - -

Ultimate full pressure

(Gas ballast valve closed)

 mbar - - - - - - - - - 0.1 0.1

Ultimate full pressure

(Single ballast valve closed)

 mbar - - - - - - - - - 0.3 0.3

Ultimate full pressure

(Double ballast valve closed)

 mbar - - - - - - - - - 1.5 1.5
Motor power 50Hz kW 0.55 0.75 1.1 1.5 2.2 4.0 4.0/5.5 5.5 7.5 15.0 18.5
60Hz kW 0.55 0.75 1.5 1.8 3.0 5.5 5.5 7.5 7.5 18.0 -
Motor speed 50Hz rpm 2800 2800 1450 1450 1450 1450 1450 1450 1450 1450 1450
60Hz rpm 3300 3300 1700 1700 1700 1700 1700 1700 1450 1700 -
Noise 50Hz dB(A) 64 65 64 65 66 72 73 72 73 75 76
60Hz dB(A) 64 66 65 66 67 73 74 73 74 76 -
Inlet Size DN G1/2" G1/2" G1-1/4" G1-1/4" G1-1/4" G2" G2" G2" G2" DN100 DN100
Outlet Size DN - - G1-1/4" G1-1/4" G1-1/4" G2" G2" G2" G2" DN80 DN80
Maximium water vapor extraction 50Hz kg/h - 0.5 0.7 1.0 1.5 2.5 4.0 3.5 4.5 17.0 24.0
60Hz kg/h - 0.5 0.8 2.0 2.0 4.0 4.5 3.5 4.5 24.0 -
Oil injection quantity L 0.4 0.75 1.5 2.0 2.0 8.0 8.0 10.0 10.0 22.0 22.0
Cooling Mode - Air cooled Air cooled Air cooled Air cooled Air cooled Air cooled Air cooled

Air cooled

/Water cooled

Air cooled

/Water cooled

Air cooled

/Water cooled

Water cooled
Weight 50Hz kg 16 21 44 54 69 142 142/145 192 198 670 850
60Hz kg 16 21 46 59 75 155 160 192 198 680 -
Dimensions L mm 308 421 647 640 710 760 795 976 1006 1500 1600
W 213 236 307 405 405 500 500 605 605 900 900
H 207 218 270 290 290 411 411 411 411 754 754
